Voodoo Air Racer

One Second in the Life of a Racer – by Tom Fey

Dago Red and Rare Bear

Dago Red leading Rare Bear toward the Home Pylon at the start of Sunday’s Unlimited Gold race in 2003.

The Unlimiteds go flashing through the racecourse, engines howling, air shearing, heat waves streaming. Four hundred eighty miles an hour is 8 miles a minute, and the elite racers take about 70 seconds to cover the 9.1 mile Reno course. If you could take a souped P-51 racer flying the circuit at Reno, slow time down, and examine just one second, what would you find?

In that one second, the V-12 Rolls-Royce Merlin engine would have gone through 60 revolutions, with each of the 48 valves slamming open and closed 30 times. The twenty four spark plugs have fired 720 times. Each piston has traveled a total of 60 feet in linear distance at an average speed of 41 miles per hour, with the direction of movement reversing 180 degrees after every 6 inches. Three hundred and sixty power pulses have been transmitted to the crankshaft, making 360 sonic booms as the exhaust gas is expelled from the cylinder with a velocity exceeding the speed of sound. The water pump impeller has spun 90 revolutions, sending 4 gallons of coolant surging through the engine and radiators. The oil pumps have forced 47 fluid ounces, roughly one-third gallon, of oil through the engine, oil cooler, and oil tank, scavenging heat and lubricating the flailing machinery. The supercharger rotor has completed 348 revolutions, it’s rim spinning at Mach 1, forcing 4.2 pounds or 55 ft³ of ambient air into the combustion chambers under 3 atmospheres of boost pressure. Around 9 fluid ounces of high octane aviation fuel, 7843 BTU’s worth of energy, has been injected into the carburetor along with 5.3 fluid ounces of methanol/water anti-detonant injection fluid. Perhaps 1/8 fluid ounce of engine oil has been either combusted or blown overboard via the crankcase breather tube. Over 1.65 million foot pounds of work have been done, the equivalent of lifting a station wagon to the top of the Statue of Liberty.

Voodoo vs Strega 2017

Steven Hinton in Voodoo leads Jay Consalvi in Strega at the 2017 Reno Air Races. Consalvi went on to pass Hinton and won the Unlimited Gold Race by one second, averaging 481.340 mph (774.642 km/h).

In that one second, the hard-running Merlin has turned the propeller through 25 complete revolutions, with each of the blade tips having arced through a distance of 884 feet at a rotational velocity of 0.8 Mach. Fifteen fluid ounces of spray bar water has been atomized and spread across the face of the radiator to accelerate the transfer of waste heat from the cooling system to the atmosphere.

In that one second, the aircraft itself has traveled 704 feet, close to 1/8 mile, or roughly 1.5% of a single lap. The pilot’s heart has taken 1.5 beats, pumping 5.4 fluid ounces of blood through his body at a peak pressure of 4.7 inches of mercury over ambient pressure. Our pilot happened to inspire during our measured second, inhaling approximately 30 cubic inches (0.5 liter) of oxygen from the on-board system, and 2.4 million, yes million, new red blood cells have been formed in the pilot’s bone marrow.

In just one second, an amazing sequence of events have taken place beneath those polished cowlings and visored helmets. It’s the world’s fastest motorsport. Don’t blink!

© Tom Fey

Voodoo Air Racer

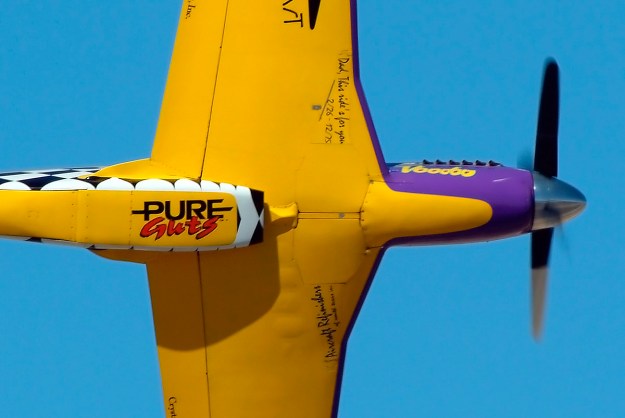

Voodoo, a highly modified North American P-51 Mustang competing in the Unlimited Air Racing Class at Reno, Nevada in 2003.

2 thoughts on “One Second in the Life of a Racer – by Tom Fey

  1. Mark Hrutkay

    I shoot media (for a website) at Reno. When I get a chance to shoot from pylon 4 where the racers enter the course, going as fast as they can (for Voodoo maybe 510MPH)….

    In the 1/250 of a second the shutter on the camera is open, Voodoo moves a hair under 3 feet. Makes those perfectly sharp shots look a lot better….

    Great story
