Hawker Tempest I Fighter

By William Pearce

On 24 February 1940, the Hawker Typhoon fighter prototype (P5212) made its first flight, piloted by Philip G. Lucas. The Typhoon was designed by Sydney Camm of Hawker Aircraft Limited and was intended as a high-altitude interceptor capable of 400 mph (644 km/h) at 20,000 ft (6,069 m). The British Ministry of Aircraft Production placed an order for 250 Typhoons on 8 October 1939, months before the prototype’s first flight. Flight testing revealed a number of design deficiencies and that the aircraft was not quite suited for its intended role. A major issue was that the compressibility of the Typhoon’s thick wing while diving at high speed caused some instability which made it very difficult to accurately fire the aircraft’s cannons. However, the Typhoon did show promise as a low-altitude interceptor and fighter-bomber.

Hawker-Tempest-I-front-side

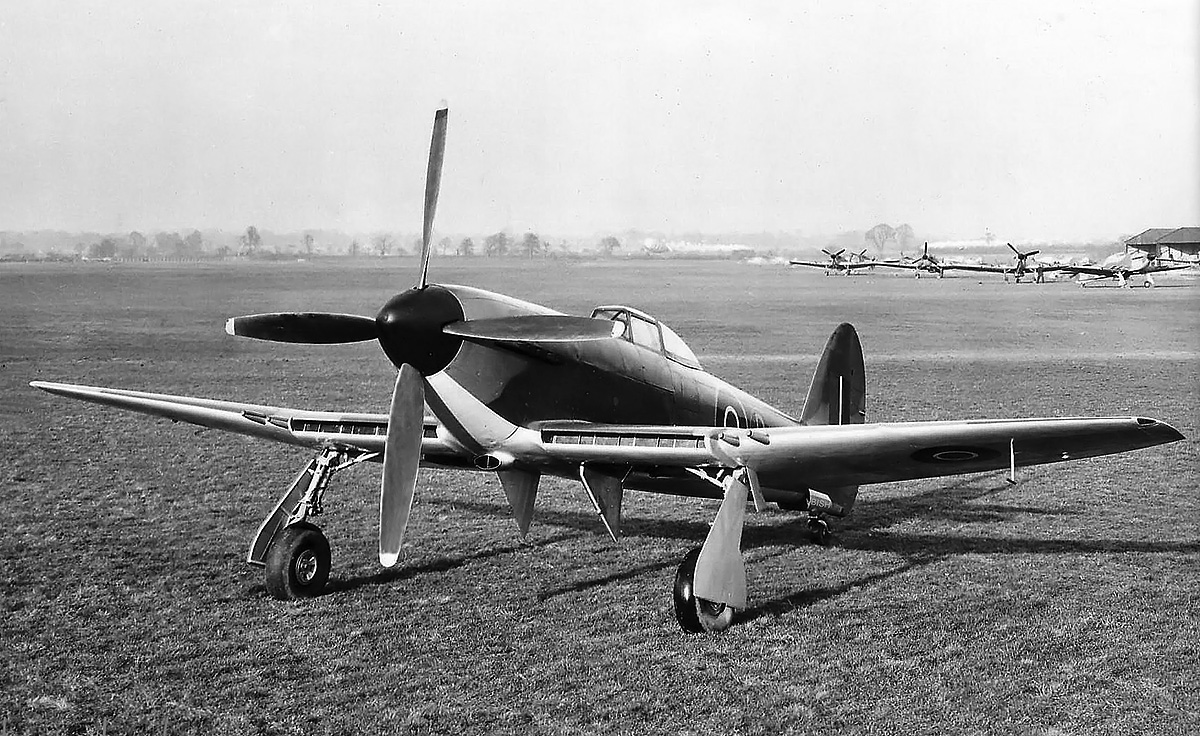

An excellent view of the recently completed Hawker Tempest I at Langley. Note the wing radiators, the large propeller, and the wide track of the main landing gear. The cannons are installed in the wings. A number of newly-built Hawker Hurricanes are in the background.

In March 1941, Camm proposed an updated Typhoon design with a new wing and a more powerful Napier Sabre IV engine to improve the aircraft’s performance over that of the original Typhoon, powered by a Sabre II. This new design was initially forecasted to have a top speed of 430 mph (644 km/h) at 20,000 ft (6,096 m) but was later revised up to 455 mph (732 km/h) at 26,000 ft (7,925 m). The anticipated development time of the new fighter was decreased by utilizing many existing Typhoon components, and the aircraft had an anticipated in-service date of December 1943. Discussions continued with the Ministry of Aircraft Production, and Specification F.10/41 was issued to cover the new aircraft. On 18 November 1941, two prototypes were ordered and issued serial numbers HM595 and HM599. The aircraft was designated as the Typhoon II. An order for 100 production aircraft was placed on 24 February 1942. With detailed design work underway, it was realized that few existing Typhoon components could be used in the Typhoon II. Camm proposed that a new name should be selected for the aircraft. Eventually, in August 1942, the Typhoon II was officially renamed Tempest to reflect that is was essentially a new aircraft.

The Sabre IV engine for the Tempest was expected in December 1941, and the aircraft was to make its first flight in late March 1942. However, complications with the aircraft’s design and delays with its engine resulted in a slip of the project’s entire timeline. In March 1942, Hawker decided to finish the first prototype, HM595, with a Sabre II engine and a chin radiator as used on the Typhoon. This would allow time for the airframe to be developed while Napier finished work on the Sabre IV engine, which would be installed in the second Tempest prototype, HM599.

Hawker-Tempest-I-side-high

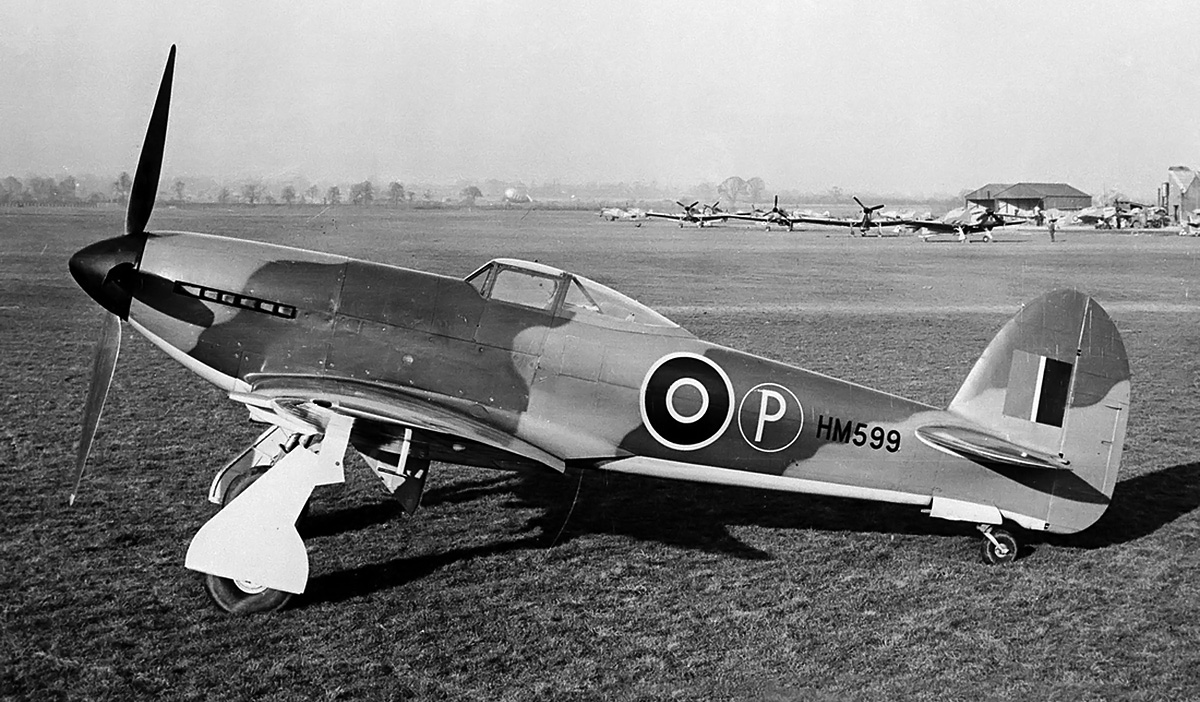

Side view of the Tempest I with its original framed canopy and cockpit entry door on the side of the aircraft. The tail was very similar to that of the Typhoon, and unlike the Tempest V, its area was not increased. Note the tail wheel doors.

In June 1942, the Tempest project was redefined. As previously specified, HM599 would be finished with the Sabre IV engine as the Tempest I, and HM595 would be finished with the Sabre II and chin radiator as the Tempest V. Four additional prototypes were ordered: two (LA602 and LA607) would be powered by the Bristol Centaurus radial engine as the Tempest II, and two (LA610 and LA614) would be powered by the Rolls-Royce Griffon IIB as the Tempest III. The Griffon IIB would later be replaced by the Griffon 61, at which time the aircraft would become the Tempest IV. An order for 400 production Tempest Is followed in August 1942.

The Hawker Tempest I was a single-engine fighter of all-metal construction with a conventional taildragger layout. The fuselage was made up of four sections: engine and engine mount, center fuselage, rear fuselage, and tail. The center fuselage consisted of the cockpit and forward fuselage and was comprised of a tubular frame covered with aluminum panels. The rear fuselage was of monocoque construction. The Tempest I’s tail section, which included the vertical and horizontal stabilizers, was basically the same as that used on production Typhoons. The tail’s attachment was reinforced with “fish plates,” just like those on mid-war Typhoons. One difference from the Typhoon was that the Tempest I’s tailwheel was fully retractable and concealed by gear doors. The fuselage of the Tempest I was 21 in (533 mm) longer than that of the Typhoon because the engine was moved forward to accommodate a 91 US gal (76 Imp gal / 345 L) fuel tank installed in the fuselage ahead of the cockpit. The cockpit was accessible via a side entry door, and the pilot sat under a framed canopy.

Hawker-Tempest-I-rear

Rear view of the Tempest I with its original canopy. Even though the Tempest I shared many components with the Tempest V, it looks like a different aircraft.

The Tempest I’s new semi-elliptical wing was mounted to the tubular frame of the center fuselage. The wing had two main spars and consisted of an inner and outer section. The inner section had no dihedral and housed the inward-retracting main landing gear that had been redesigned from that of the Typhoon. The landing gear had a wide track of 14 ft 11 in (4.53 m). A 34 US gal (28 Imp gal / 127 L) fuel tank was located in each wing between the main gear leg well and rear spar. Engine coolant radiators and the oil cooler were installed in the leading edge of the wing’s center section. Adjustable flaps on the underside of the wing just aft of the heat exchangers regulated coolant and oil temperatures. Each outer wing section had a 5.5-degree dihedral and housed two 20 mm Hispano Mk II cannons with 150 rpg. Each wing had a two-section, hydraulically actuated split flap and featured a large aileron. The Tempest I’s wing was approximately 5 in (127 mm) thinner at the root and 7 in (178 mm) shorter in span than that of the Typhoon and could not house all the needed fuel, which is why the fuselage tank was added. Provisions were included for the installation of a 54 US gal (45 Imp gal / 205 L) drop tank under each wing. Except for the fabric-covered rudder, all control surfaces were covered with metal.

The Tempest I’s sleeve-valve, H-24 Napier Sabre IV engine was mounted to the forward part of the tubular fuselage frame. The engine produced 2,240 hp (1,670kW) at 4,000 rpm at 8,000 ft (2,438 m) with 9 psi (.62 bar) of boost. This was some 200 hp (149 kW) more than the Sabre II used on the Typhoon. A small scoop under the engine fed air into the carburetor. The Sabre IV turned a metal, four-blade, constant-speed de Havilland propeller that was 14 ft (4.27 m) in diameter. Omitting the Typhoon’s chin radiator and relocating the cooling system in the wings gave the Tempest I a much more refined and aerodynamic look compared to the earlier aircraft.

Hawker-Tempest-I-in-flight

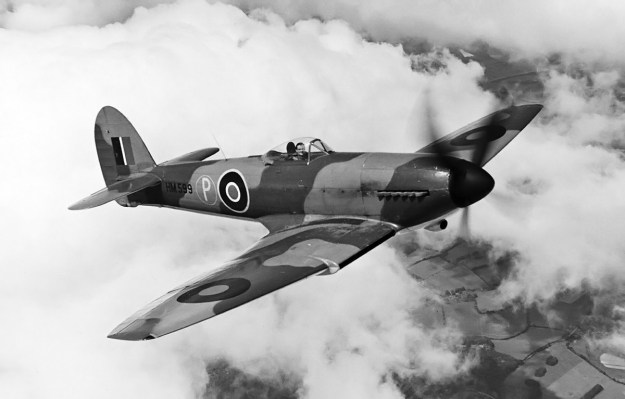

The Tempest I in flight with Bill Humble at the controls. The aircraft now has the one-piece bubble canopy, and its armament has been removed. Note the carburetor intake under the engine.

The Hawker Tempest I had a 41 ft (12.40 m) wingspan, was 33 ft 7 in (10.24 m) long, and was 15 ft 10 in (4.83 m) tall. The aircraft’s top speed was 466 mph (750 km/h) at 24,500 ft (7,468 m) and 441 mph (710 km/h) at 13,600 ft (4,145 m). It could climb to 15,000 ft (4,572 m) in 4 minutes and 15 seconds and had a ceiling of 37,000 ft (11,278 m). The Tempest I weighed 8,950 lb (4,060 kg) empty and 11,300 lb (5,126 kg) loaded. The aircraft’s range was 500 miles (805 km) on internal fuel and 800 miles (1,287 km) with drop tanks.

Construction of the Tempest I prototype at Hawker’s new facility in Langley, England was delayed by other war work and by the wing radiators. As previously mentioned, delivery of the Sabre IV was delayed by Napier. The Sabre II-powered Tempest V was first flown on 2 September 1942 by Lucas and gave some indication of what to expect with the Tempest I. The Sabre IV engine was delivered in November 1942, and the Tempest I underwent ground trials in February 1943. Tempest I HM599 was first flown on 24 February 1943, piloted by Lucas. Lucas found the Tempest I to have improved stability over that of the Tempest V, although pitch authority became non-existent under 110 mph (177 km/h).

A new engine was installed in early March 1943, and the aircraft returned to the air on 26 March. Two days later, Bill Humble made his first flight in the Tempest I. In late April and through May, a more developed Sabre IV engine was installed, and the Tempest I was modified with a conventional, one-piece, rearward-sliding bubble canopy. It also appears that the cannons were removed, at least temporarily, at this time. The updated Tempest I flew on 4 June, piloted by Humble. Some performance testing was done during the remainder of June. The Sabre IV engine exhibited a drastic increase in oil consumption at speeds over 3,750 rpm, and the hand-built engines seldom reached 50 hours before needing to be replaced. Despite the engine difficulties, the Tempest I was praised for its performance and handling, especially at higher altitudes.

Hawker-Tempest-I-Napier-Sabre-IV

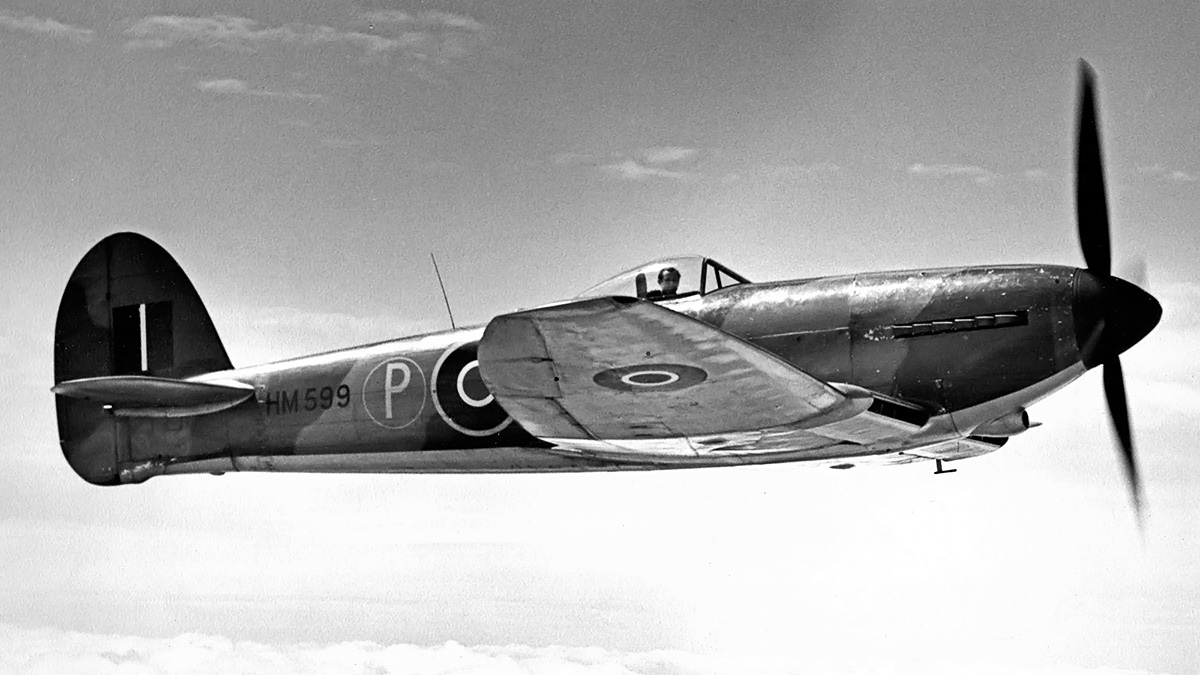

Another image of Humble in the Tempest I. This angle illustrates the aircraft’s clean lines. The air exit gap aft of the wing radiator is somewhat visible, as are the fish plates to reinforce the tail.

Another Sabre IV engine was installed in late July 1943, and a thinner horizontal stabilizer may have been installed at this time. The Tempest I resumed flight testing in August, at which time speeds of 460 mph (740 km/h) at 25,300 ft (7,711 m) and 443 mph (713 km/h) at 13,300 ft (4,054 m) were recorded. Humble achieved higher speeds in September, which included the aircraft’s official 466 mph (750 km/h) at 24,500 ft (7,468 m) and 441 mph (710 km/h) at 13,600 ft (4,145 m). The highest recorded level speed was 472 mph (760 km/h) at 18,000 ft (5,486 m). Testing continued, but development issues with the Sabre IV engine led to further work on the Tempest I project not being covered by government contract beyond December 1943. The Tempest V with its Sabre II engine required less development, and the type took over the original order for the Tempest I.

There was still life for the Tempest I. The aircraft was fitted with a 2,420 hp (1,805 kW) Sabre V engine, and the combination was first flown on 8 February 1944 by Humble. On 12 February, an order for 700 Sabre V-powered Tempest Is was received. On 9 March, the Tempest I was damaged in a ground accident involving a Hawker Hurricane. The Tempest I was quickly repaired and resumed flying on 28 March. The Tempest I order was cut to 300 aircraft in April and then converted to the Sabre V-powered Tempest VI in May.

The Tempest I continued to serve as a Sabre V engine testbed until at least March 1945. With the Sabre V, the Tempest I recorded a speed of 462 mph (743 km/h) at 17,600 ft (5,364 m) and 444 mph (715 km/h) at 7,200 ft (2,195 m). The Tempest I’s last flight appears to have been made on 31 August 1945. On 11 September 1947, the Tempest I was struck off charge, and the aircraft was scrapped on or shortly after 27 October 1947. At least six pilots made at least 91 flights in the Tempest I, but a full account of its flight time has not been found.

Hawker-Tempest-I-in-flight-top

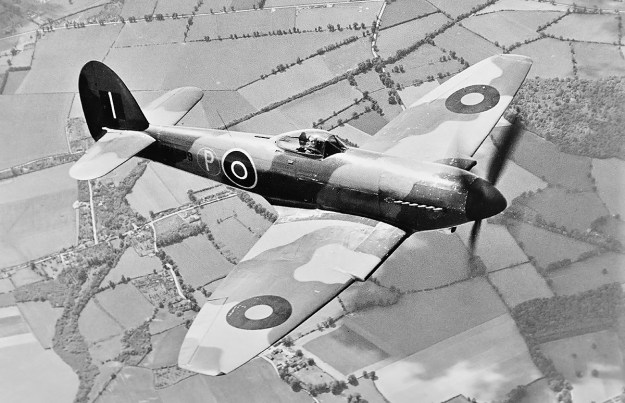

The Tempest I was an elegant aircraft that demonstrated excellent performance. Engine trouble and the more straightforward development of the Tempest V led to the Tempest I ultimately not being produced.

Sources:
Hawker Typhoon, Tempest and Sea Fury by Kev Darling (2003)
Tempest: Hawker’s Outstanding Piston-Engined Fighter by Tony Buttler (2011)
The Hawker Typhoon and Tempest by Francis K. Mason (1988)
Fighters Volume Two by William Green (1964)
Hawker Typhoon and Tempest: A Formidable Pair by Philip Birtles (2018)
Hawker Aircraft since 1920 by Francis K. Mason (1991)
